DRILLING DEVICE
  PUMPING UNITS

PETROLEUM SPECIAL VEHICLES
  TOP DRIVE DEVICES
  TREATMENT SYSTEM
DRILLING RIGS

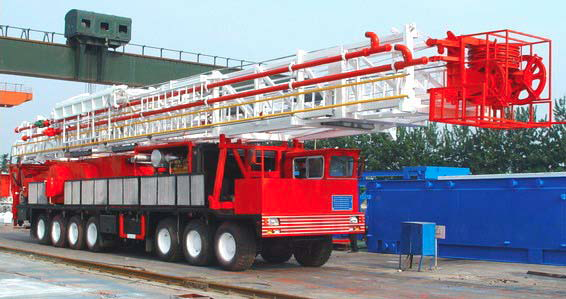

TRUCK‐MOUNTED DRILLING RIG

TRUCK‐MOUNTED DRILLING RIG
                                                                    TRUCK‐MOUNTED DRILLING RIG

With an optimum structure and high‐level integration, the whole rig requires a small working space. The heavy‐duty self‐propelled chassis are available in various drive ways 8°-6, 10x8, 12x8, 14x8, 14x12, with hydraulic steering system which ensures good drilling accessibility, cruise capability and lateral stability, and also the working reliability of every component. The matching between the engine and the transmission box ensures high driving efficiency and high working reliability. The drawworks and rotary tables can be driven by motors.

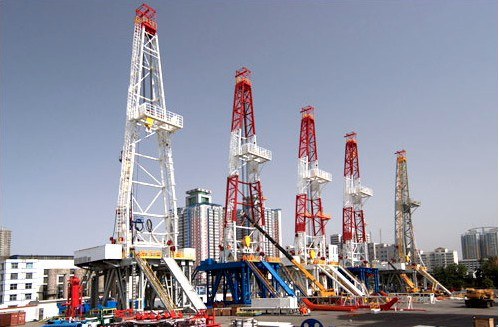

SKID‐MOUNTED DRILLING RIG

SKID‐MOUNTED DRILLING RIG
                                                          SKID‐MOUNTED DRILLING RIG

The drive ways of these kinds of drilling rigs include mechanical drive, electrical drive (VFD or SCR),  electro/mechanical drive and others.  The compact skid modular structure is convenient for installation and transportation. It meets the requirement of entire moving structure and cluster well drilling. In addition, the drilling rig requires only a small working space due to its compact configuration. Mast structure types include A type, K type (telescopic vertical hoisting mast, entire hoisting mast), etc. The  structure types of the substructure include swing-up, sling-shot, box-on-box and telescoping etc.,

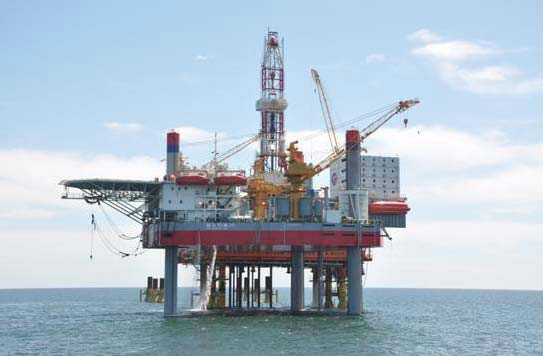

OFFSHORE DRLLING RIG

OFFSHORE DRLLING RIG
                                                                                        OFFSHORE DRLLING RIG

This offshore drilling and workover rig has a modular structure to achieve fast installation, and can meet the hoisting requirements of different hoisting equipment. It can move in both longitudinal and transverse directions to achieve workover or drilling operations on every well location in the pad area of the océan platform wellhead.  With different structure and height, the basement can meet the layout requirements of a variety of guide rail spaces and deck surface. This rig has strong wind‐resistance and an anti‐vibration capacity. Its maximum wind‐resistance capacity is 107 knots.

The structural parts have undergone surface anticorrosive processes. This includes a combination of spray‐painting, baked painting, spray‐aluminum and spray‐zinc to meet the requirements of the ocean environment and climate.


TRAILER‐MOUNTED DRILLING RIG

TRAILER‐MOUNTED DRILLING RIG
                                                                       TRAILER‐MOUNTED DRILLING RIG

The trailer‐mounted drilling rig is divided into mechanical drive, electrical drive and trailer‐mounted drilling rig without ground anchor, of which the main characteristics are as follows:

The drawworks of the trailer‐mounted mechanical drive is driven by diesel engine and hydraulic transmission box, which has a proper matching and high transmission efficiency.

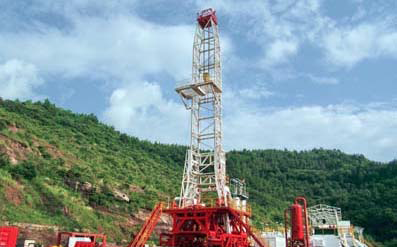

MOUNTAINOUS DRILLING RIG

MOUNTAINOUS DRILLING RIG

MOUNTAINOUS DRILLING RIG

The mountainous drilling rig is designed with a small module structure. The length of a single module is less than 36ft and its weight is less than 33069lb. This means it is suitable for transportation and operation in mountainous and hilly areas. The drill floor has a box structure which makes transportation and lifting more convenient.

The rig floor area and height can be designed in accordance with the requirements of the customer. With a clearance height of 105ft, the mast is a free standing, multi‐section telescopic type that can be raised up vertically in orders by horizontal hydraulic cylinders. It is especially suitable for narrow well sites. With high‐level technical integration, the mast only covers a  small space.

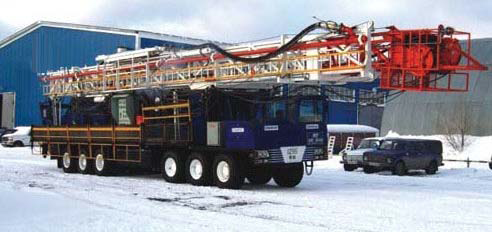

COLD WEATHER DRILLING RIG

COLD WEATHER DRILLING RIG
                                                      COLD WEATHER DRILLING RIG

The cold‐weather drilling rig can normally be operated under a working ambient temperature of ‐45 degrees, which is suitable for use in the severe cold oil fields in Russia, Canada and other similar regions. The main loading parts of this drilling rig are produced with cryogenic materials which are assessed strictly after low‐temperature welding.

The travelling block and crown block are produced with special materials and technology processes to ensure good working performance under low température conditions.
